COB SPI Addressable RGB LED Strip — 360/480/576/720 LEDs, 5V/12V/24V Low-Voltage Digital Light Strip

Illuminate your space with a high-density COB addressable RGB LED strip that delivers smooth, continuous color and precise pixel control for living rooms, accent lighting, displays, and creative projects.

Specifications:

• Item Type: LED Strip
• Strip Type: COB (Chip On Board)
• LED Counts: 360 / 480 / 576 / 720 LEDs (available options)
• Color: RGB (full color)
• Voltage: 5V / 12V / 24V DC (check product variant)
• Nominal Voltage: 12 V
• Luminous Flux: 249–2000 lm (approx.)
• Power Source: DC
• Waterproof: No
• Is Smart Device: Yes (requires compatible pixel controller)
• Is Batteries Included: No
• Certifications: CE, FCC, RoHS, UL
• Cutting Interval: Every 0.5 m (1.64 ft)
• Connector: 3-pin SM (red = VCC, white = GND, green = DATA)

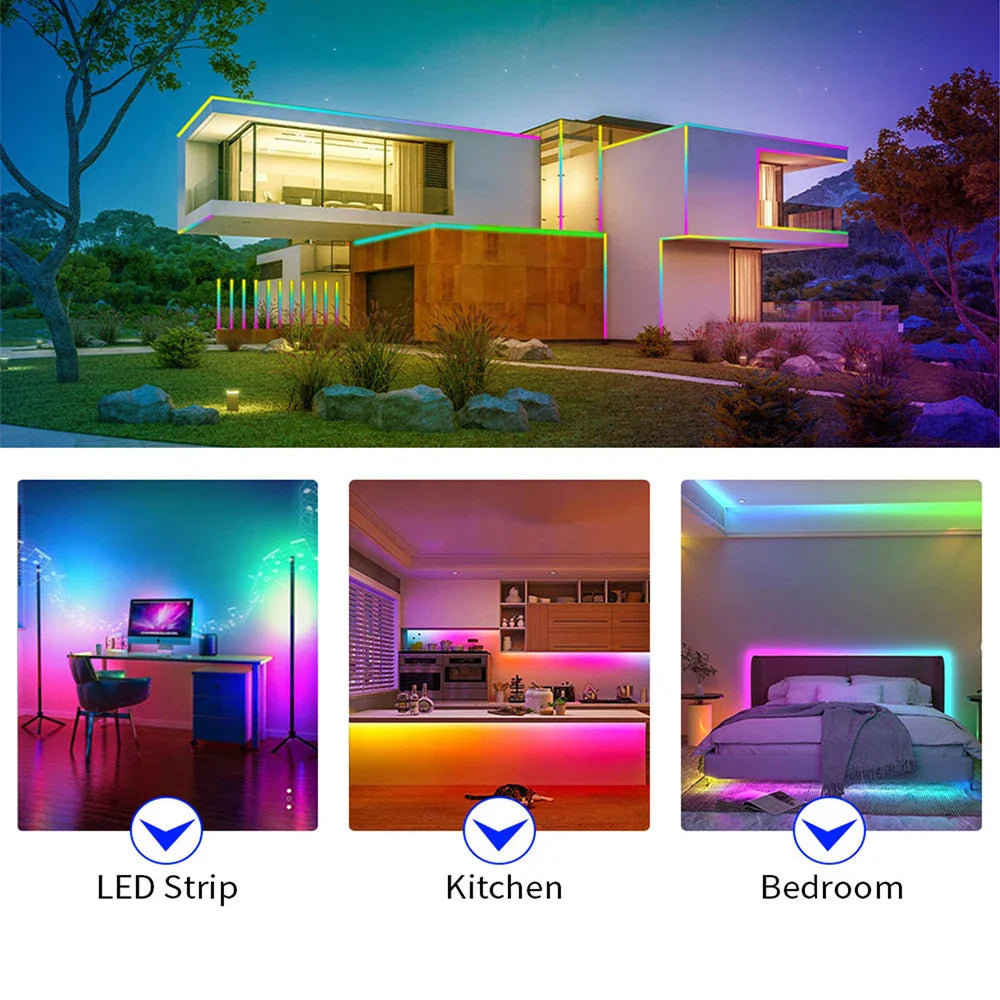

• Recommended Occasion: Living room, accent lighting, display lighting

Overview & Tips:

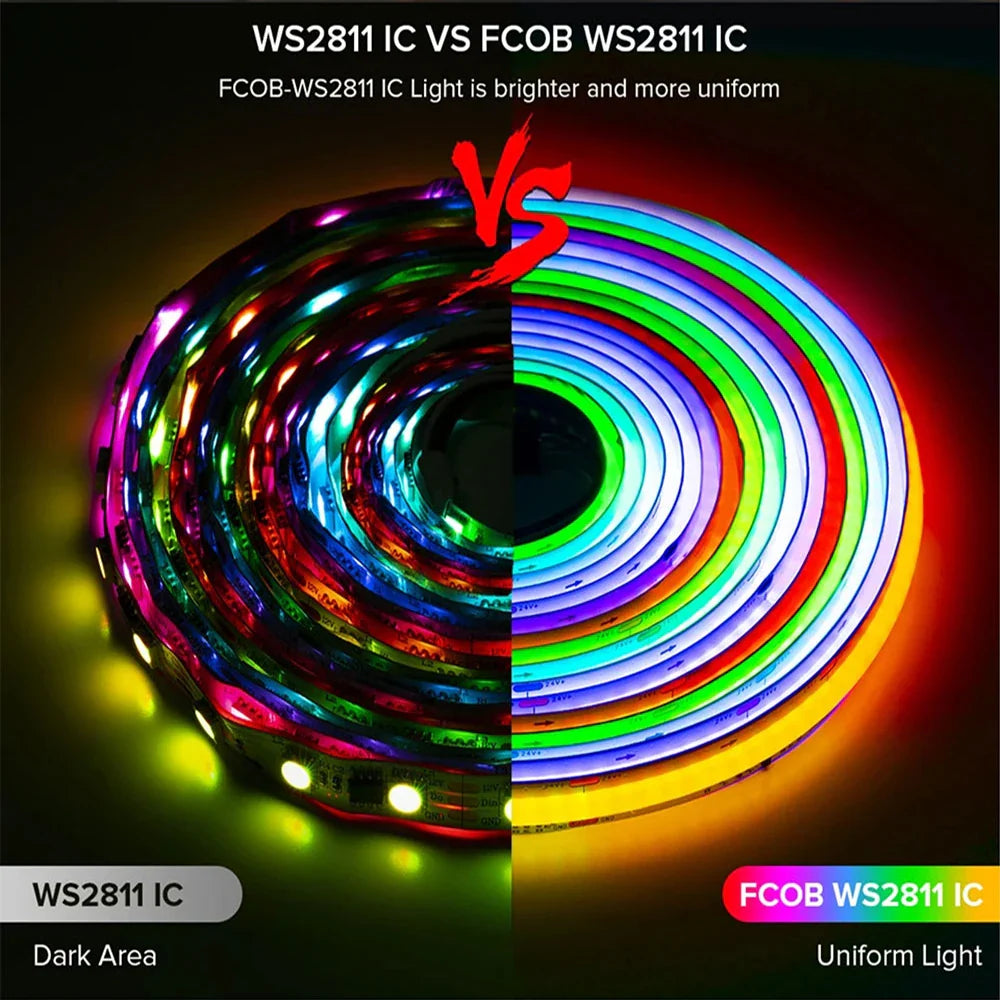

Designed for smooth, continuous color mixing and precise pixel-level control, this COB SPI addressable RGB LED strip is ideal for ambient lighting, backlighting, stage accents, signage, and custom installations. The strip features a continuous light surface with dense LEDs for dreamy color effects and reduced visible dotting.

Important Notes:

• Price includes only the LED light strip. Power supply and pixel controller are not included.
• This SPI COB RGB strip typically requires a DC 12V or 24V power supply and a compatible pixel controller. Verify voltage for the variant you purchase.
• There is a welded joint every 0.5 meters (1.64 ft); this is normal for electronic strips and not a defect.
• Cut the strip only at marked cutting points. Do not fold or bend forcefully.

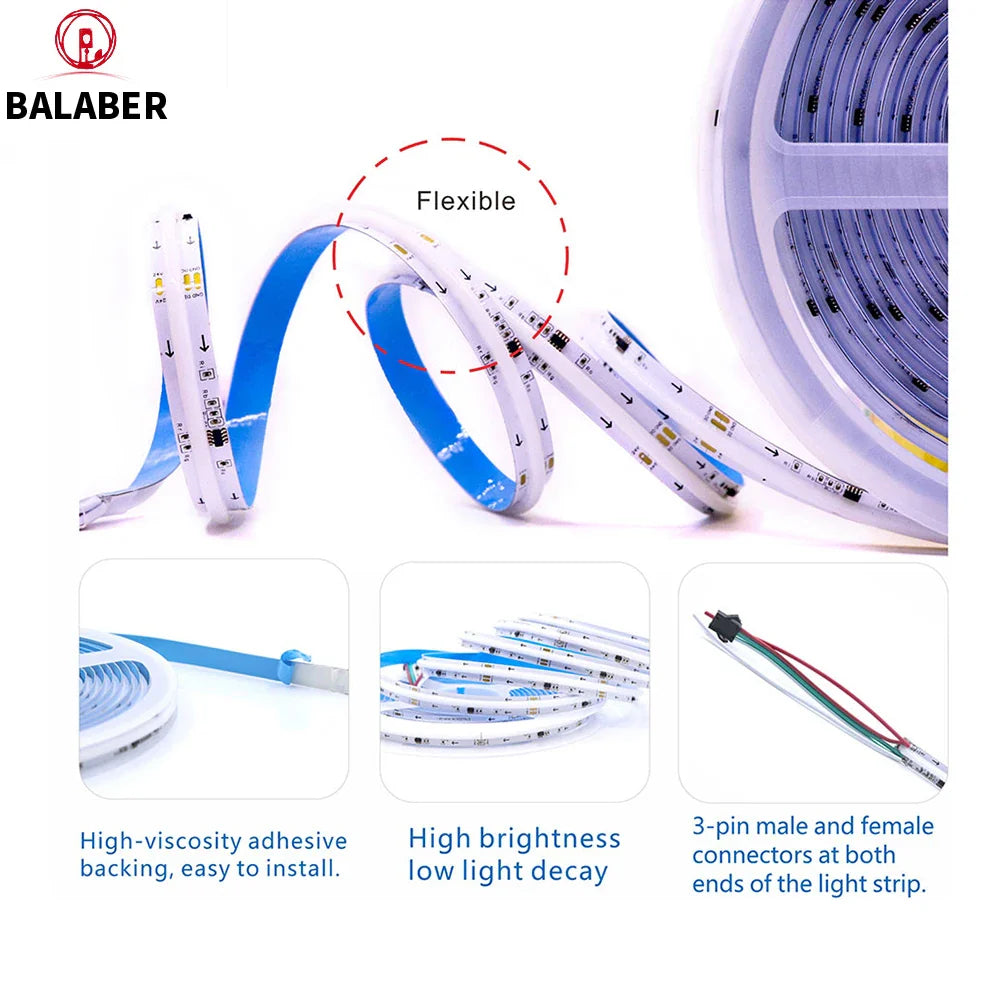

• Ensure the installation surface is smooth, clean, and dry before applying the adhesive tape on the back of the PCB.
• For longer runs, inject power at multiple points (both ends or intermediate) to reduce voltage drop.

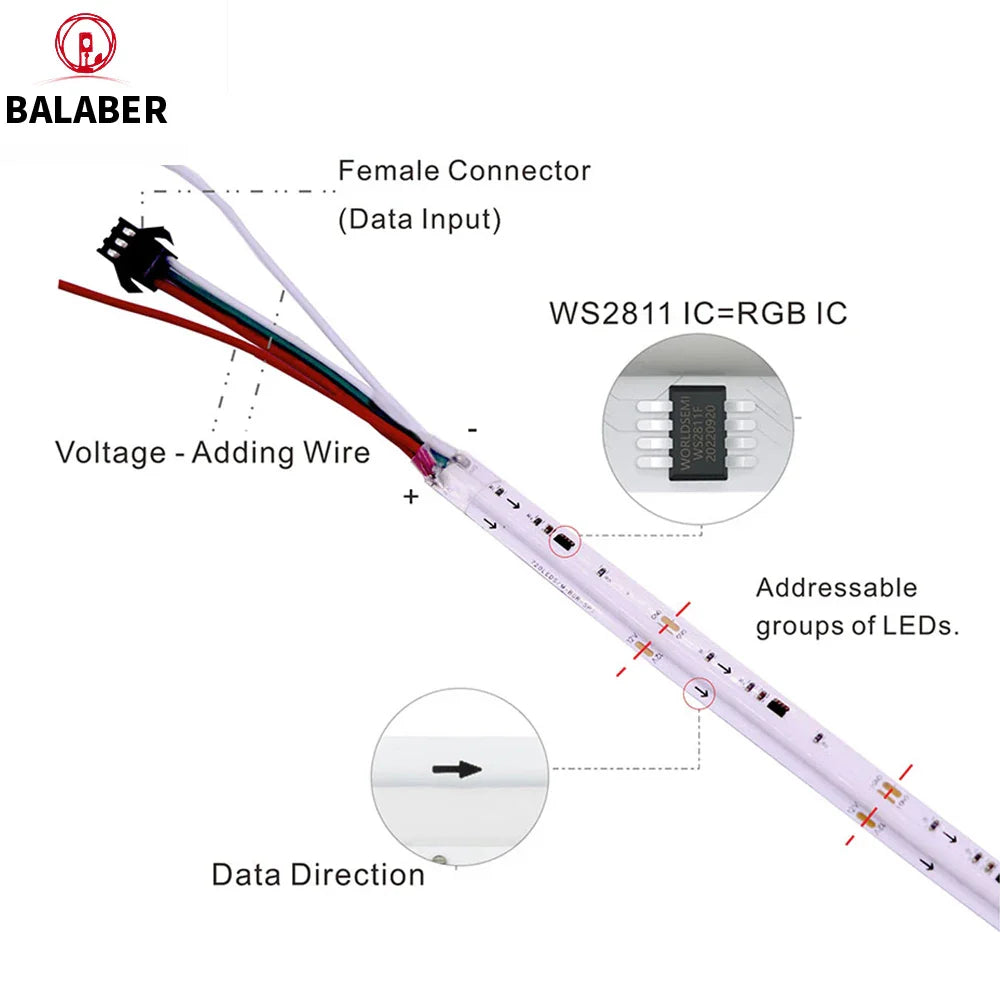

• Connector pinout: red = VCC, white = GND, green = DATA. Verify wiring before powering on.
• Not compatible with WLED/ESP32 controllers. Use compatible SPI pixel controllers (Bluetooth, Wi‑Fi, or dedicated pixel controllers) — sold separately.

Power Calculation Example:

Theoretical power consumption: 12V strips ≈ 12 W/m (≈ 3.66 W/ft); 24V strips ≈ 21 W/m (≈ 6.40 W/ft). Example: a 5 m (16.4 ft) 24V strip: 21 W/m × 5 m = 105 W. Required current = 105 W ÷ 24 V ≈ 4.4 A — choose a power supply rated at least 5 A or higher.

Installation Tips:

• Test the strip and controller before permanent installation.
• Use adequate power injection for long runs to maintain brightness and color accuracy.
• Mount on a clean, dry surface; consider aluminum profile channels for heat dissipation and a finished look.
