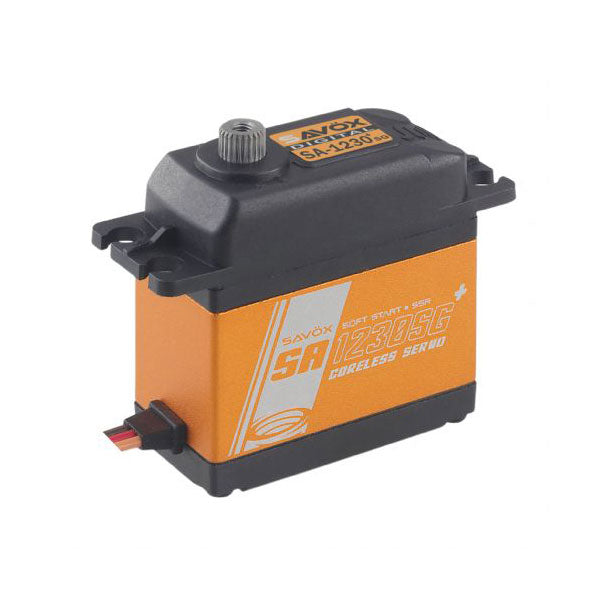

Savox SA1230SGP Plus Coreless Monster Torque Servo - 36 kg-cm | 6V Operation

Overview

The Savox SA1230SGP Plus is a coreless monster torque steel-gear digital servo designed for those who need extra torque without moving to an HV power source. With a slightly taller case housing unique strengthened steel gears, it provides the raw steering force needed for rock crawlers, monster trucks, and large-scale aircraft.

At 6V the SA1230SGP delivers 36 kg-cm (499.9 oz-in) of torque with a 0.16 sec/60° response, making it an excellent choice for standard voltage systems.

Key Features

• Coreless motor for smooth, efficient operation
• Extremely strong unique steel gears
• Slightly taller large-scale case (40.3 x 20.2 x 44.9 mm, 79g)
• Soft Start and Sanwa SSR compatibility
• Monster torque in a 6V-capable package

Performance Benefits

• 36 kg-cm torque without needing HV power
• Bulletproof steel gear durability
• Smooth coreless motor response
• Sanwa SSR compatibility

Usage Notes

• Ideal for rock crawlers and trail driving
• Excellent for monster trucks and large bashers
• Perfect for large-scale RC aircraft
• Recommended for high-torque steering builds using standard receiver packs

Technical Specs

• Dimensions: 40.3 x 20.2 x 44.9 mm
• Weight: 79g
• Speed @ 6V: 0.16 sec/60°
• Torque @ 6V: 36 kg-cm (499.9 oz-in)
• Motor Type: Coreless
• Gear Type: Unique Steel
• Operating Voltage: 6V
• Special Features: Soft Start, SSR Compatible

What's Included

• (1) Savox SA1230SGP Plus Coreless Monster Torque Servo
• Servo horn hardware

Summary

The Savox SA1230SGP Plus delivers monster 36 kg-cm torque at standard 6V with steel gears. Premium coreless servo for crawlers and large-scale RC builds.
