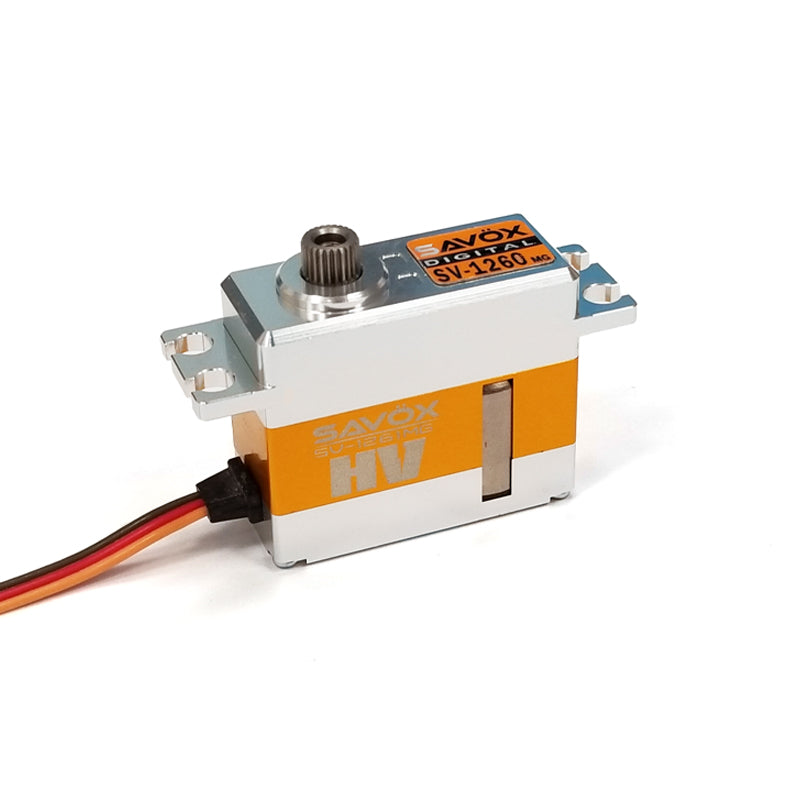

Savox SV-1260MG Aluminum Hi-Torque Mini HV Digital Servo for 250–450 Heli Tail (167 oz / 0.055 sec @ 7.4V)

Overview

The Savox SV-1260MG is a mini-sized, high-voltage digital servo with a full aluminum case and metal gearset — one of the strongest and fastest mini servos available. It's specifically engineered for 250–450 class helicopter tail applications where tight centering, rapid correction, and heat-resistant construction are critical to stable flight.

An all-metal gear train resists the repetitive high-load cycles of helicopter tail service, while 2S LiPo compatibility unlocks peak performance from modern high-voltage power systems.

Key Features

• Mini-size high-voltage digital servo
• Full aluminum case for heat dissipation
• Metal gear train for durability
• HV (7.4V) capable
• Purpose-built for 250–450 class heli tails
• Torque 8 kg (111 oz) @ 6V · 12 kg (167 oz) @ 7.4V
• Speed 0.065 sec @ 6V · 0.055 sec @ 7.4V
• 40 g · 35 × 15 × 30.7 mm

Applications

• 250–450 class electric helicopter tail rotor
• Mini-size servo replacements on heli platforms
• Aircraft control surfaces requiring fast response
• HV-powered specialty RC applications

Scale Capability

The SV-1260MG is engineered specifically for 250–450 class electric helicopters where a mini form factor tail servo with fast response and tight centering is critical to flight stability. Aluminum case construction handles the repetitive loads of tail correction without heat buildup.

Benefits

• Fast 0.055 sec response for tight tail control
• Aluminum case for cooler operation
• Metal gears for long service life
• HV-ready for 2S LiPo power

What's Included

• (1) Savox SV-1260MG Mini HV Digital Servo
• Servo horns and mounting hardware

Summary

• Mini HV aluminum case digital servo
• 167 oz / 0.055 sec at 7.4V
• Metal gear train for durability
• Ideal for 250–450 class heli tails
