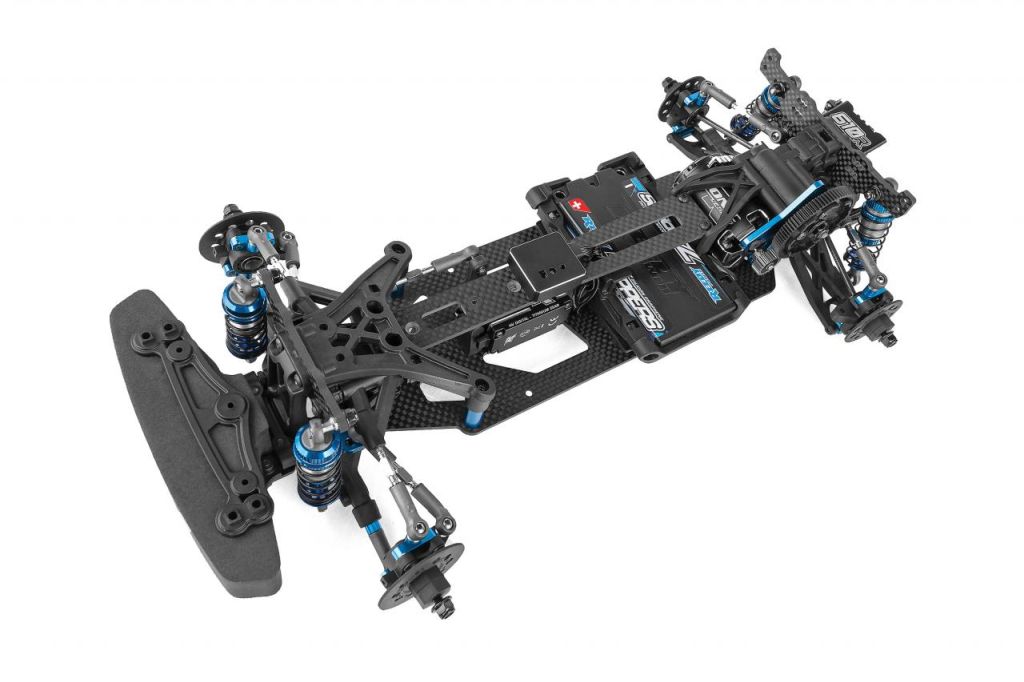

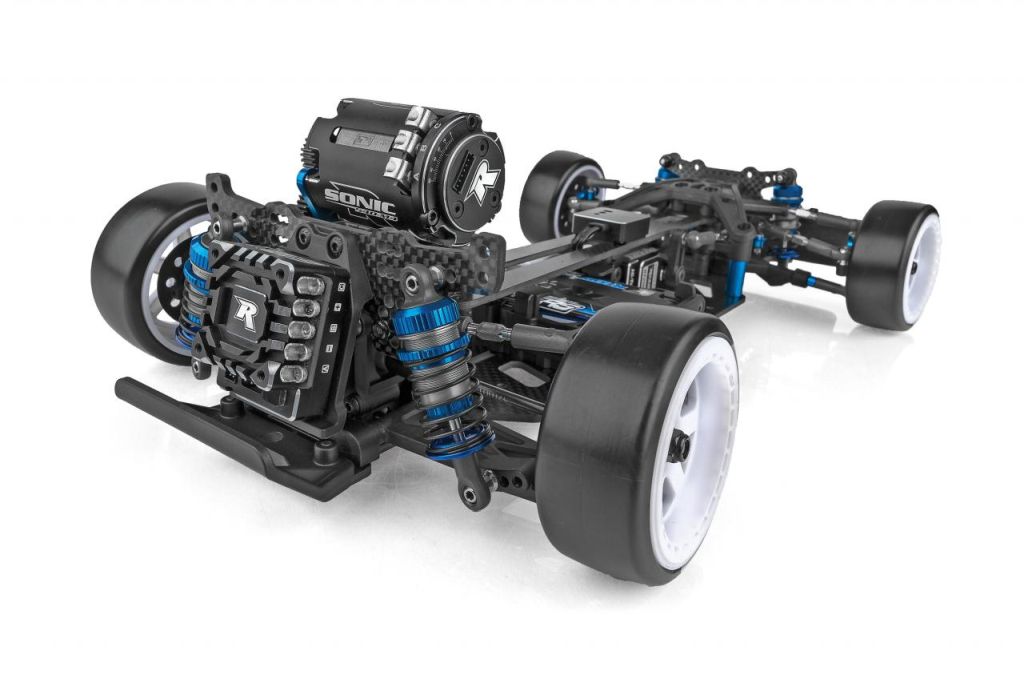

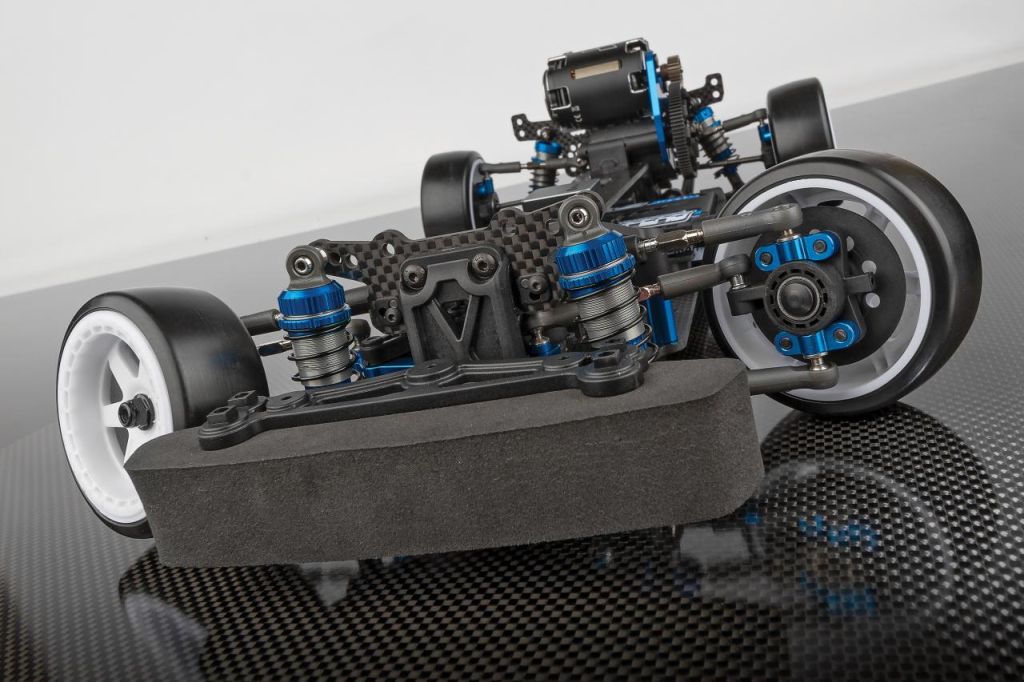

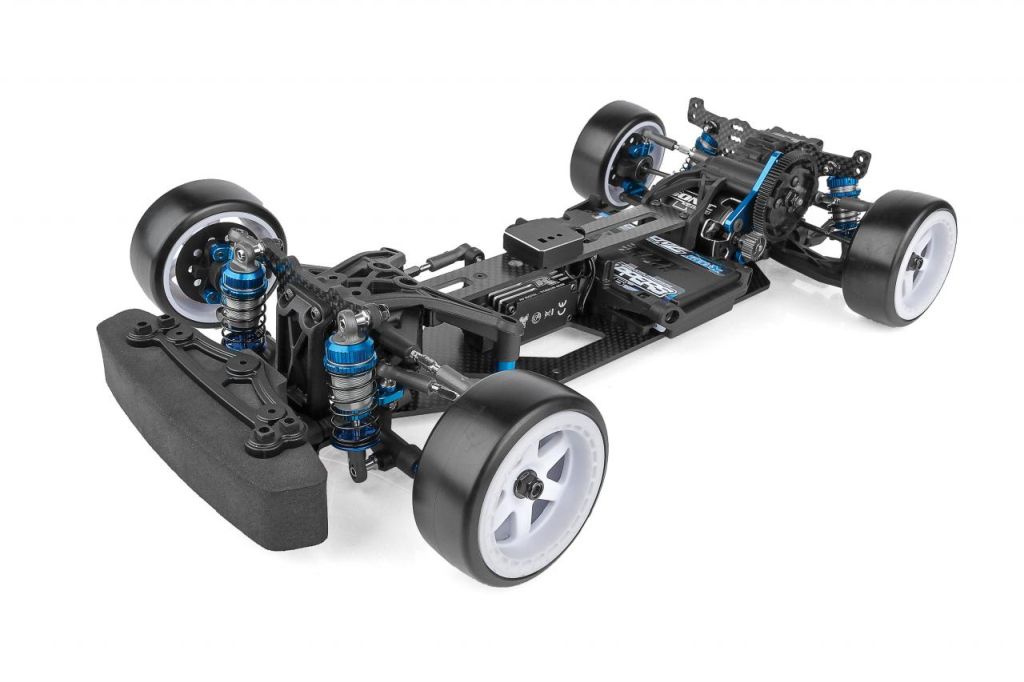

Team Associated DC10 1/10 Scale 2WD Electric Competition Drift Car Kit

Overview

The Team Associated DC10 Drift Car Kit represents the pinnacle of RC drift engineering, designed by the Area 51 engineers who have established Team Associated as leaders in competition racing since 1964. This 1/10 scale RWD competition drift chassis delivers precision handling and comprehensive tunability for drivers seeking to master the art of controlled oversteer. With its roots in on-road racing heritage, the DC10 provides the ultimate platform for competitive drifting.

At the heart of the DC10 is a meticulously crafted Factory Team 2.5mm carbon fiber drift chassis, engineered for optimal weight distribution and balance. Hard-anodized threaded aluminum shocks and carbon fiber shock towers provide a solid foundation for high-performance drifting, while fully tunable blue-anodized aluminum Ackermann plates allow precise steering adjustments for maximum throw through sharp turns and intricate maneuvers.

Key Features

• Factory Team 2.5mm carbon fiber drift chassis
• Factory Team hard-anodized threaded aluminum shocks
• Factory Team 2.5mm carbon fiber shock towers
• Two Factory Team 2.5mm carbon fiber top plates included
• Fully tunable blue-anodized aluminum Ackermann plates
• High and low motor mounting options
• +6mm transmission height adjustment insert
• Maximum steering throw with adjustable servo location
• Adjustable battery placement for weight tuning
• Rear-mounted ESC plate for low CG
• Precision rubber-sealed ball bearings throughout
• Easy-to-adjust camber and caster settings
• Adjustable offset wheel hexes
• Adjustable rear anti-squat and toe-in

Performance Benefits

• Carbon fiber construction maximizes rigidity while minimizing weight
• RWD layout provides authentic drift dynamics
• Comprehensive Ackermann adjustment maximizes steering throw
• Multiple motor positions optimize power delivery
• Height adjustment raises roll center for larger spur gears
• Dual top plate options tune chassis flex
• Tool-free camber and caster adjustments
• Low CG design improves traction and control

Drift-Specific Engineering

• Optimized weight distribution for controlled slides
• Maximum steering angle for tight drift transitions
• Tunable chassis flex characteristics
• Compatible with drift gyro systems
• Designed for drift tire compatibility

Usage Notes

The DC10 Drift Car Kit is designed for competitive RC drifting on smooth, hard surfaces. This kit requires assembly and electronics selection including a drift gyro for optimal control. Best suited for dedicated drift tracks and smooth pavement. Recommended for intermediate-to-advanced builders.

Technical Specs

• Scale: 1/10
• Drivetrain: 2WD RWD
• Wheelbase: 257mm (10.12 in)
• Chassis: 2.5mm Carbon Fiber
• Internal Gear Ratio: 2.6:1
• Power Source: Electric (2S LiPo)
• Surface: On-Road/Drift
• Format: Kit (Unassembled)
• Brand: Team Associated

What's Included

• DC10 1/10 RWD Drift Car Kit (unassembled)
• Factory Team 2.5mm carbon fiber chassis
• Factory Team carbon fiber shock towers
• Two carbon fiber top plate options
• Hard-anodized threaded aluminum shocks
• Blue-anodized aluminum Ackermann plates
• Precision ball bearings
• Assembly hardware and instruction manual

Needed to Complete

• 3+ channel radio system (transmitter and receiver)
• 540-size electric motor (13.5T recommended)
• Electronic Speed Controller (ESC)
• Drift steering gyro
• Low-profile steering servo
• 2S LiPo shorty battery
• Compatible battery charger
• 1/10 drift wheels and tires
• 1/10 Lexan drift body
• Polycarbonate body paint
• 48-pitch pinion gear

Summary

The Team Associated DC10 Drift Car Kit delivers competition-grade drifting performance with Factory Team carbon fiber construction, comprehensive tunability, and precision engineering. With adjustable Ackermann, motor positions, and chassis flex options, this 1/10 RWD drift platform gives serious drifters the tools to master controlled oversteer.
