WS2812B RGB LED Pixel Ring - Individually Addressable 8/16/24/35/45-LED DC 5V

Illuminate: Vibrant WS2812B RGB LED pixel rings deliver individually addressable full-color lighting for DIY projects, signage, cosplay, and home décor. Each ring features built-in drivers for precise color control and seamless animations—perfect for makers and lighting designers.

Specifications:

• Chip Model: WS2812B (built-in driver, individually addressable)
• LED Type: 5050 SMD RGB

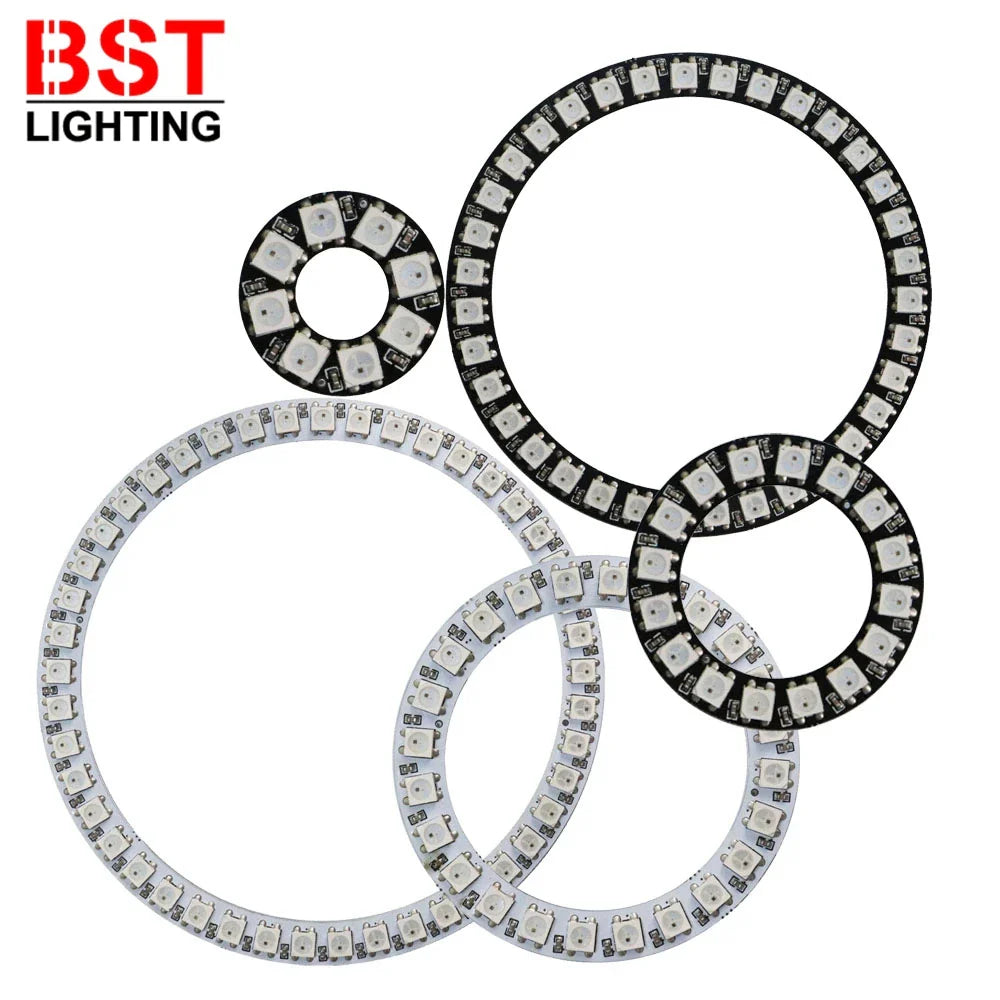

• LED Count Options: 8 / 16 / 24 / 35 / 45 LEDs per ring
• Color Temperature: 2200–6500K (depends on programming)
• Voltage: DC 5V (power supply and controller not included)
• Power Consumption: 5.76 W/m
• Luminous Flux: 249–2000 lm (depending on LED count and color)
• Average Life: >50,000 hours
• Certifications: CCC, CE, FCC, RoHS
• Waterproof: No — for indoor use or protected installations
• Addressable: Yes — single data line with timing-specific protocol
• Controller Requirements: Requires a real-time microcontroller (e.g., AVR, Arduino, PIC, mbed). Not suitable for interpreted or some Linux-based microcontrollers that cannot meet strict timing requirements.
• Recommended Use: Indoor decorative lighting, living room accents, signage, costumes, maker projects

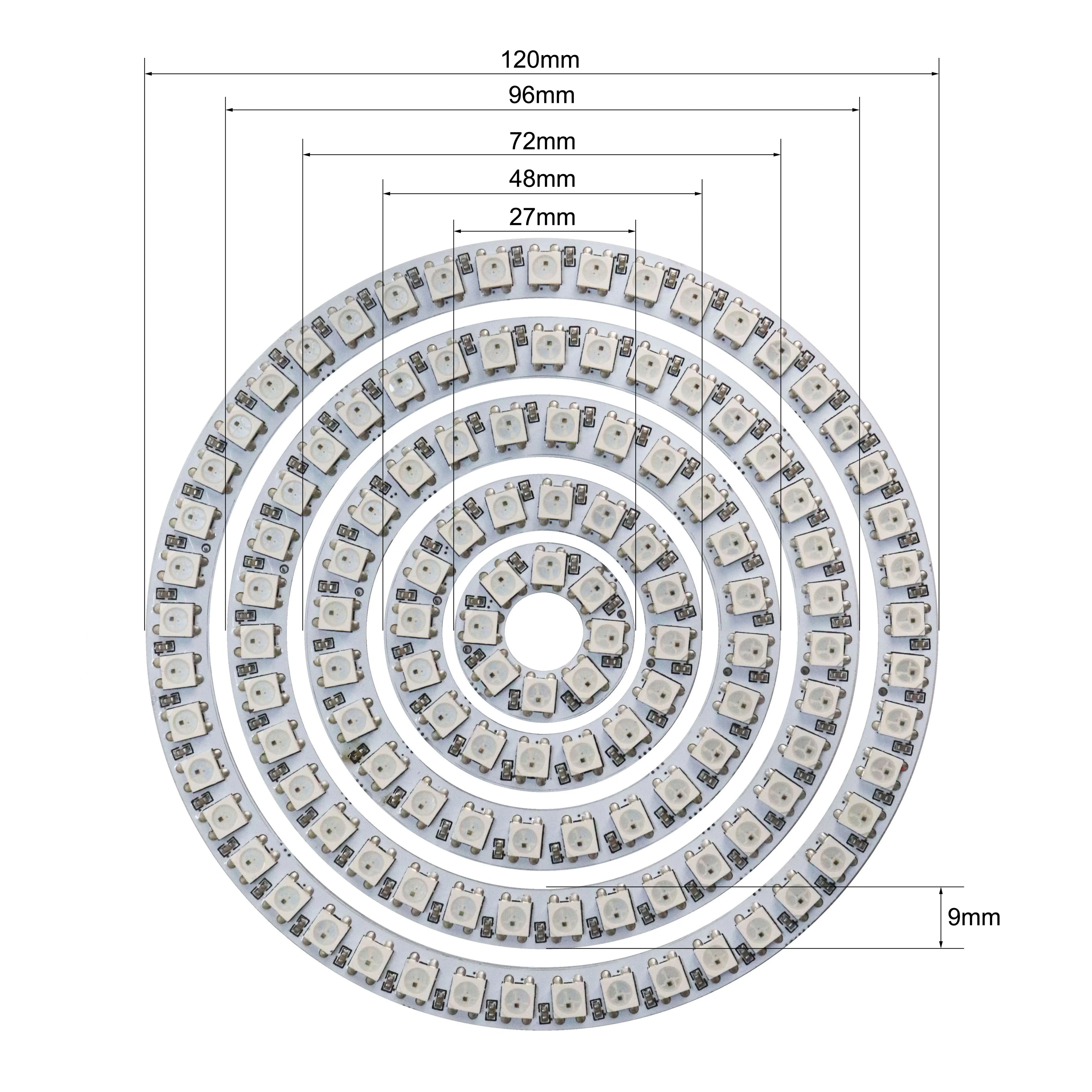

• Dimensions (Outer Ø / Inner Ø / PCB width):

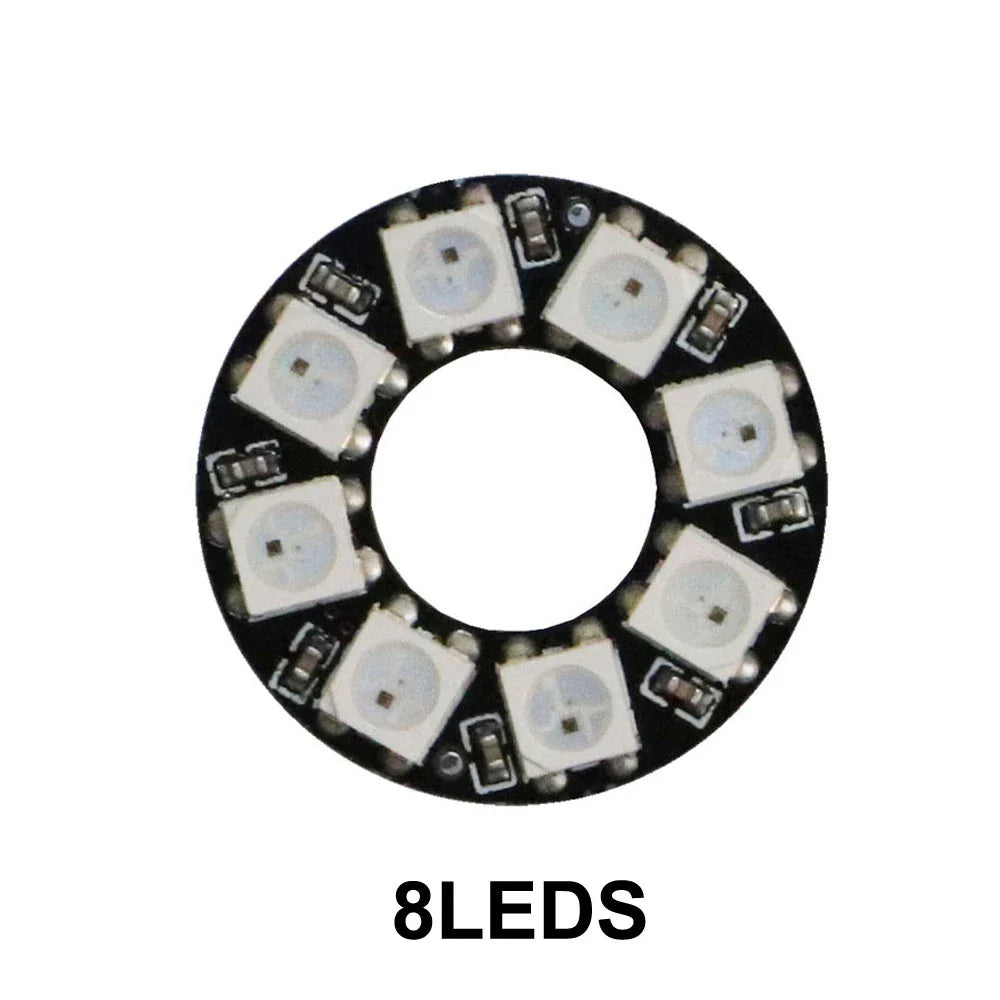

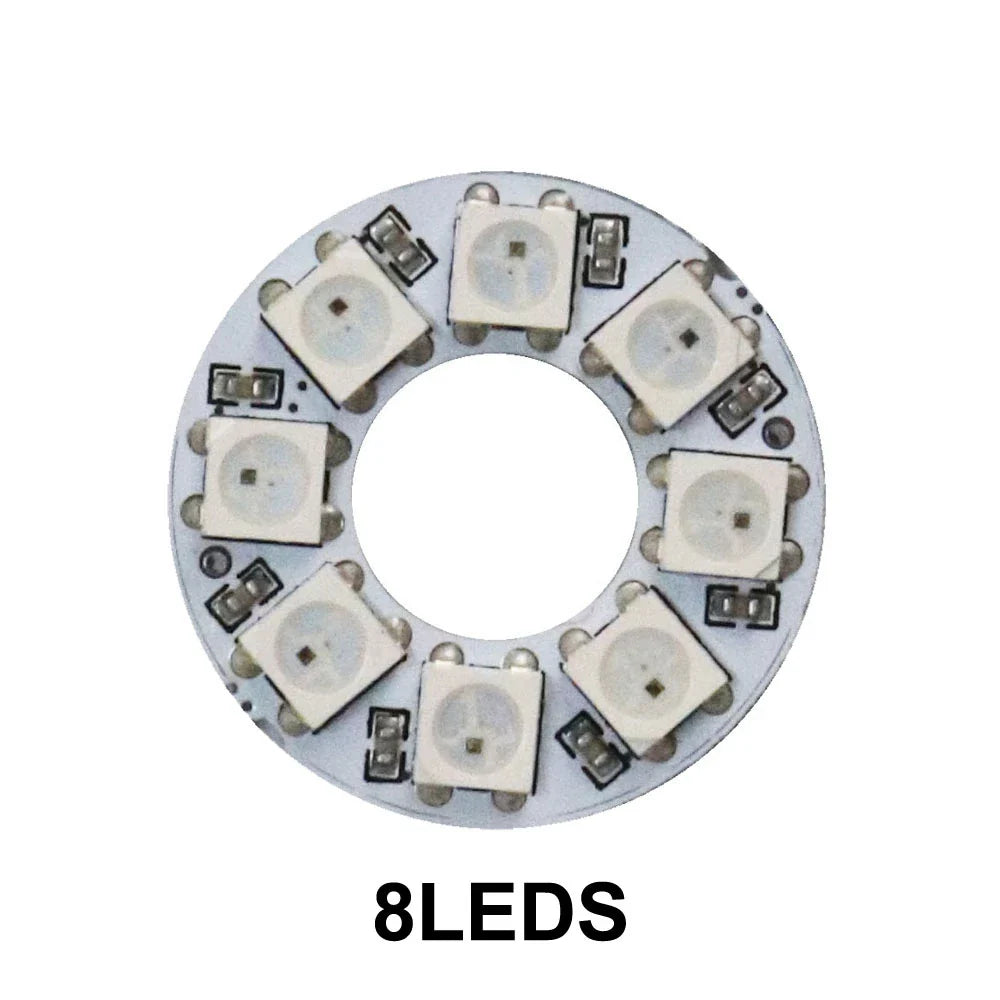

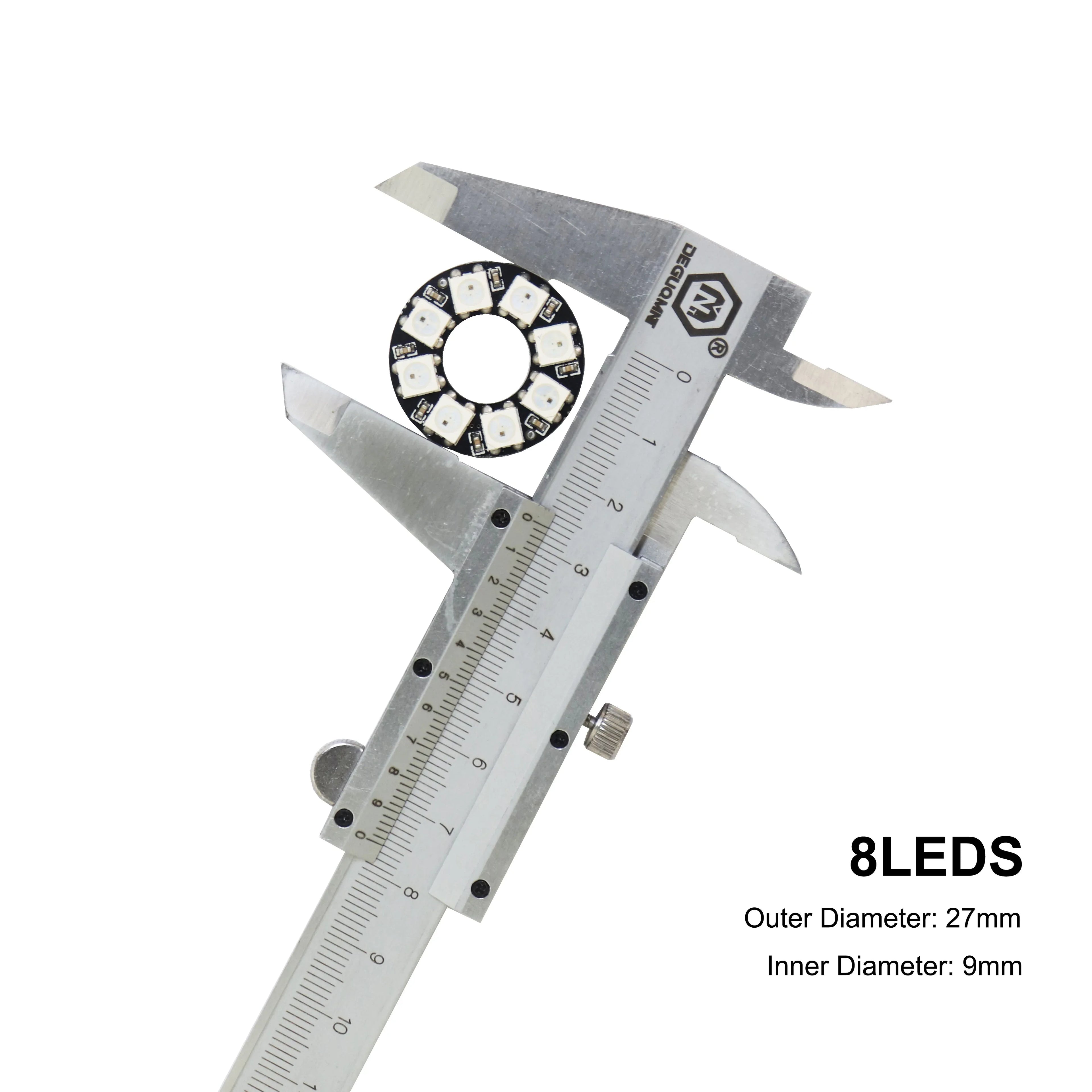

  • 8 LED: 27 mm / 12 mm / 7.5 mm (1.06" / 0.47" / 0.30")

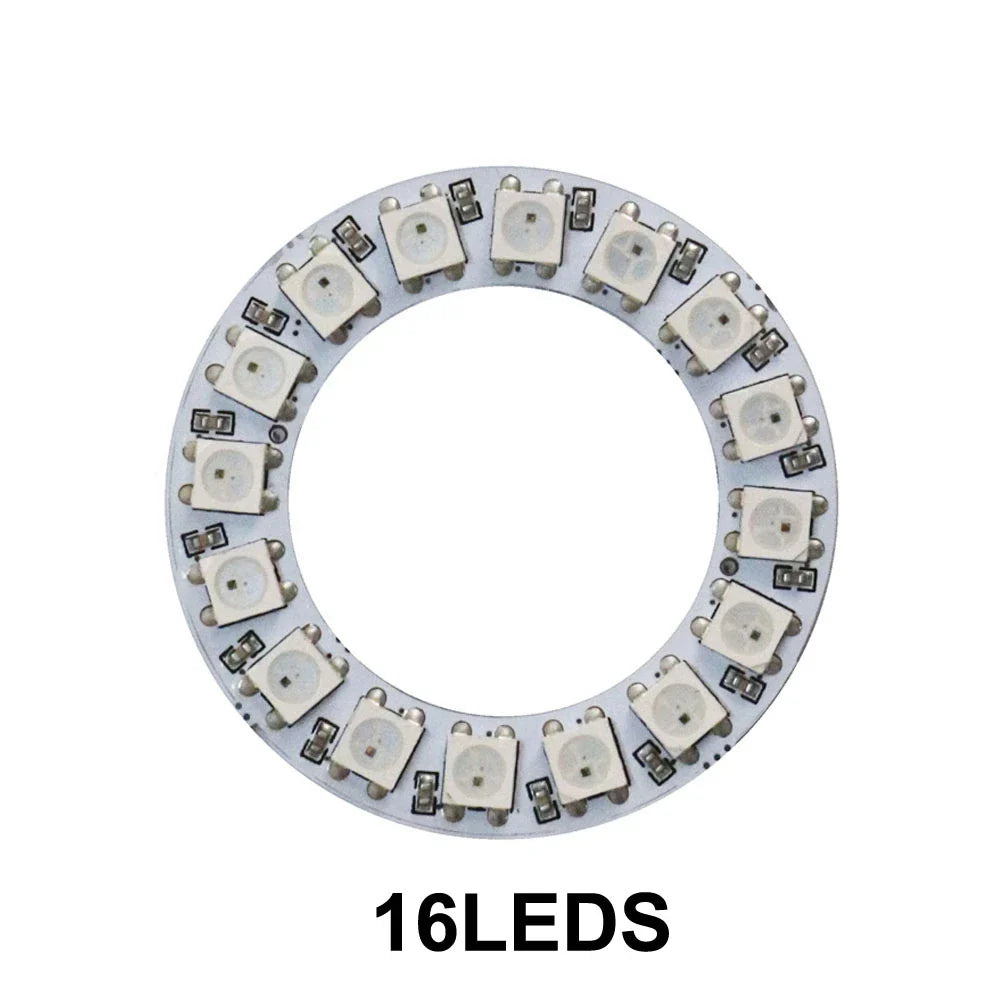

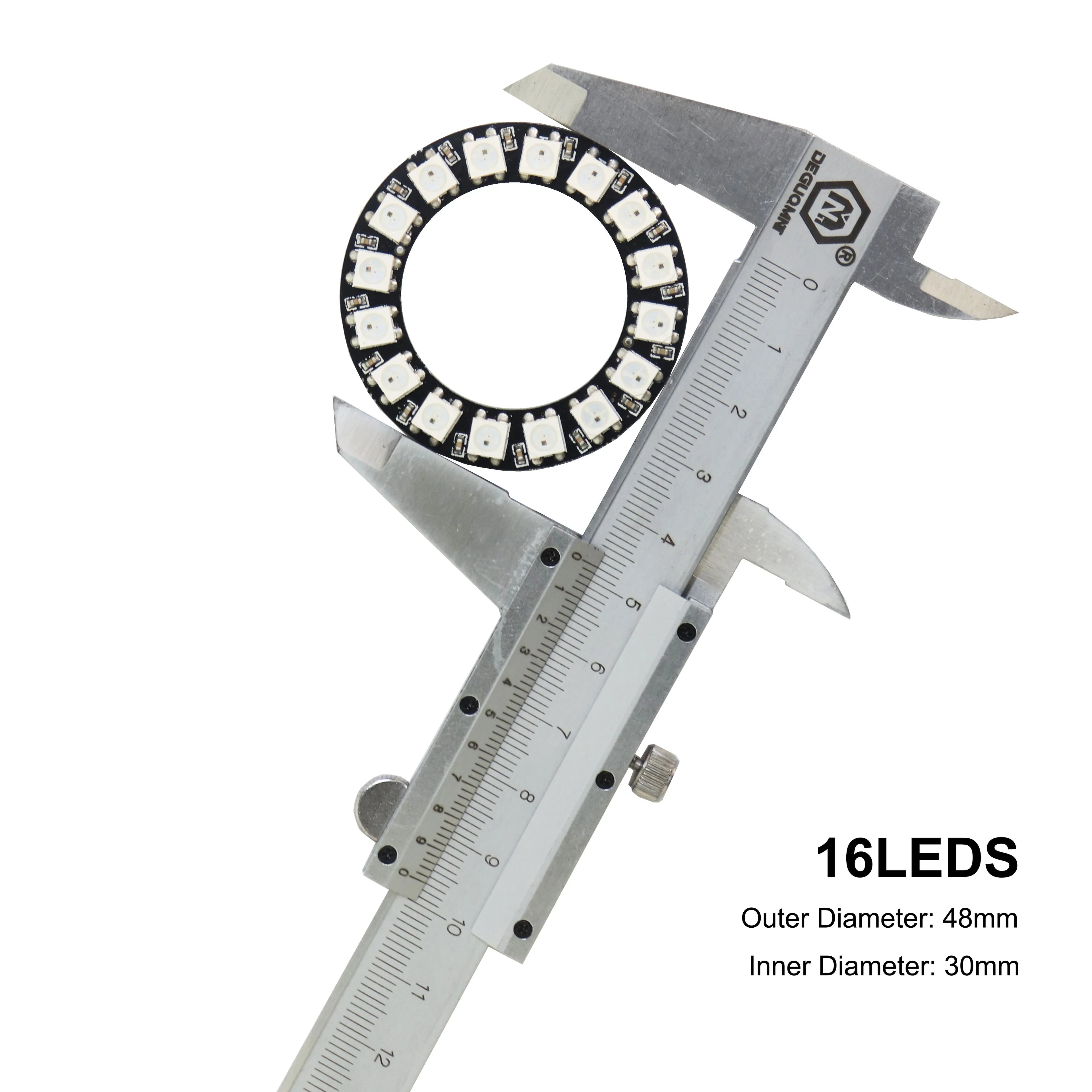

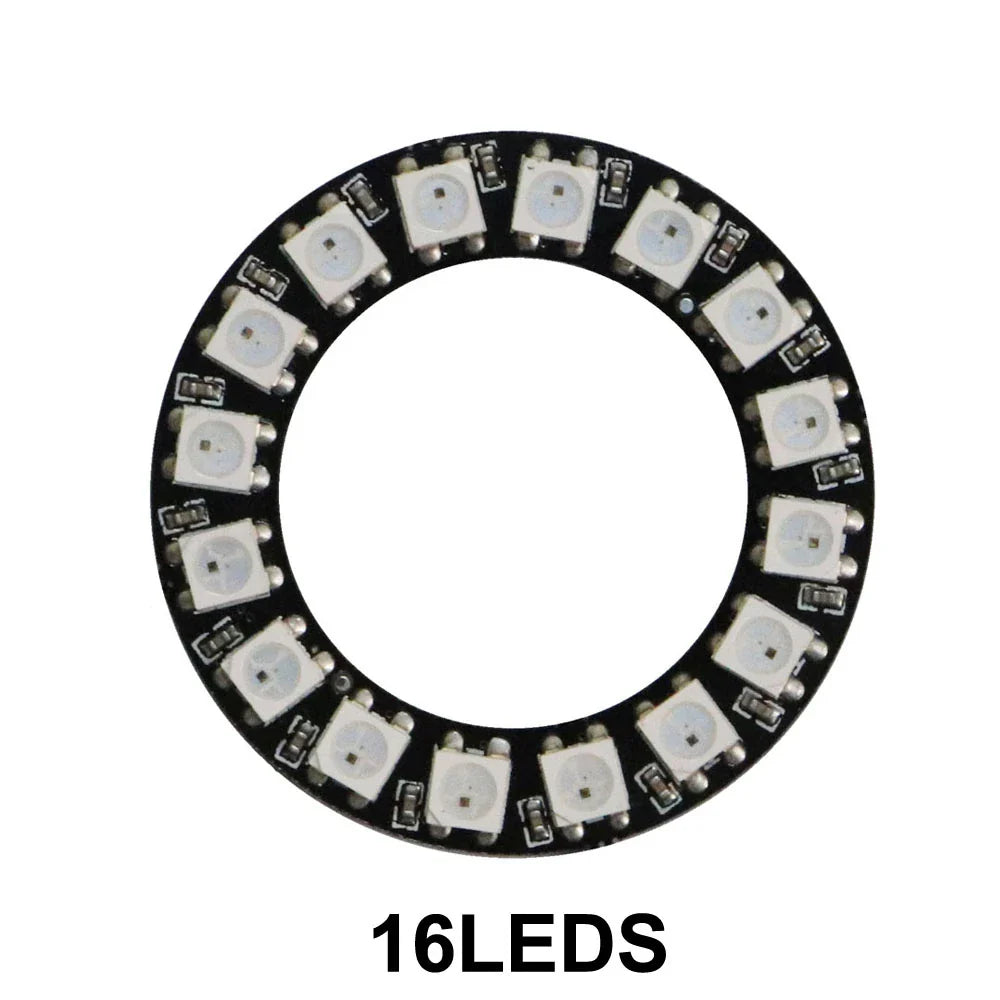

  • 16 LED: 48 mm / 31.1 mm / 7.5 mm (1.89" / 1.22" / 0.30")

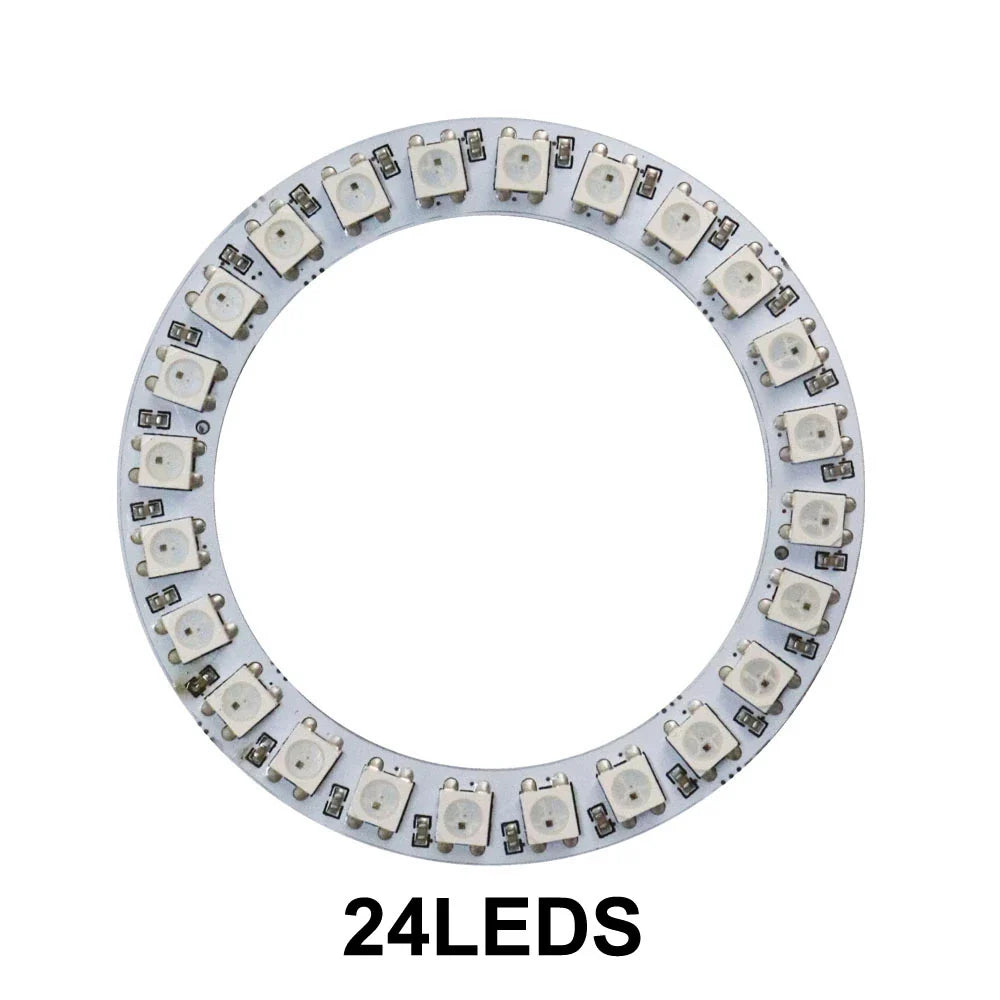

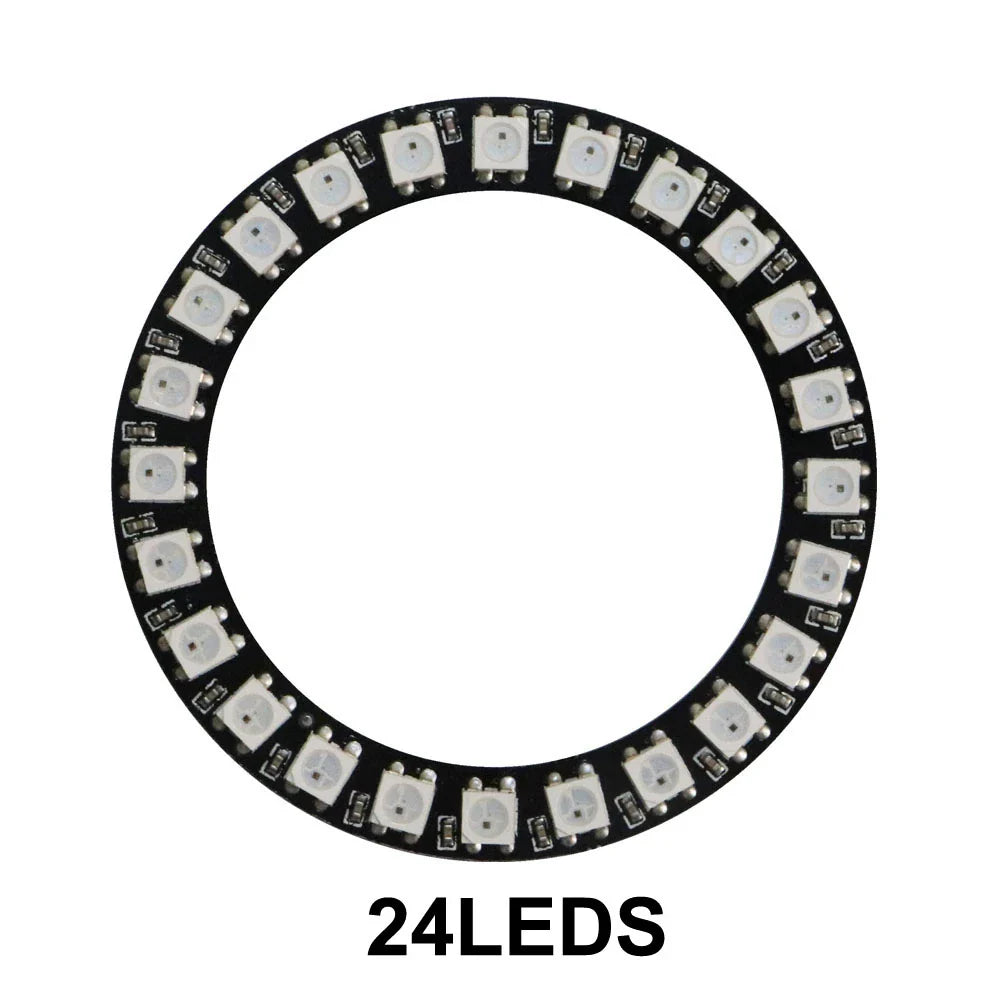

  • 24 LED: 72 mm / 54 mm / 9 mm (2.83" / 2.13" / 0.35")

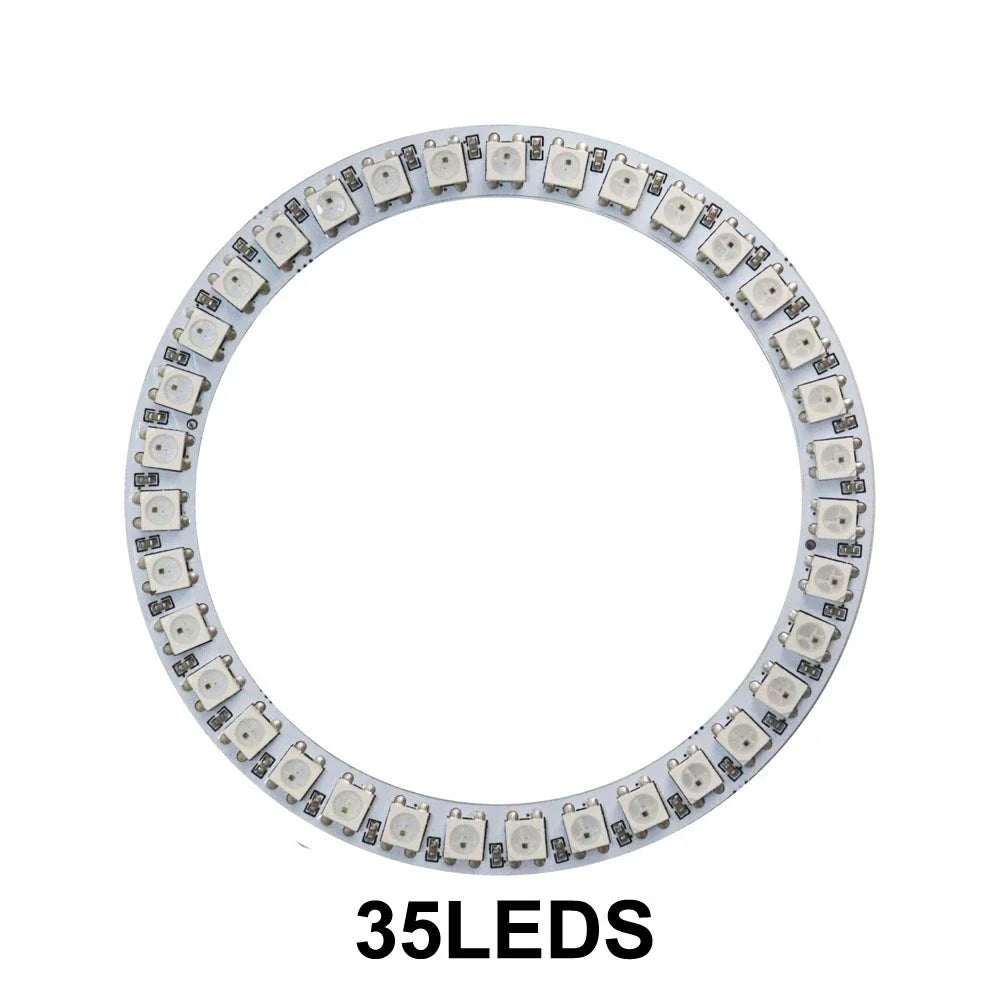

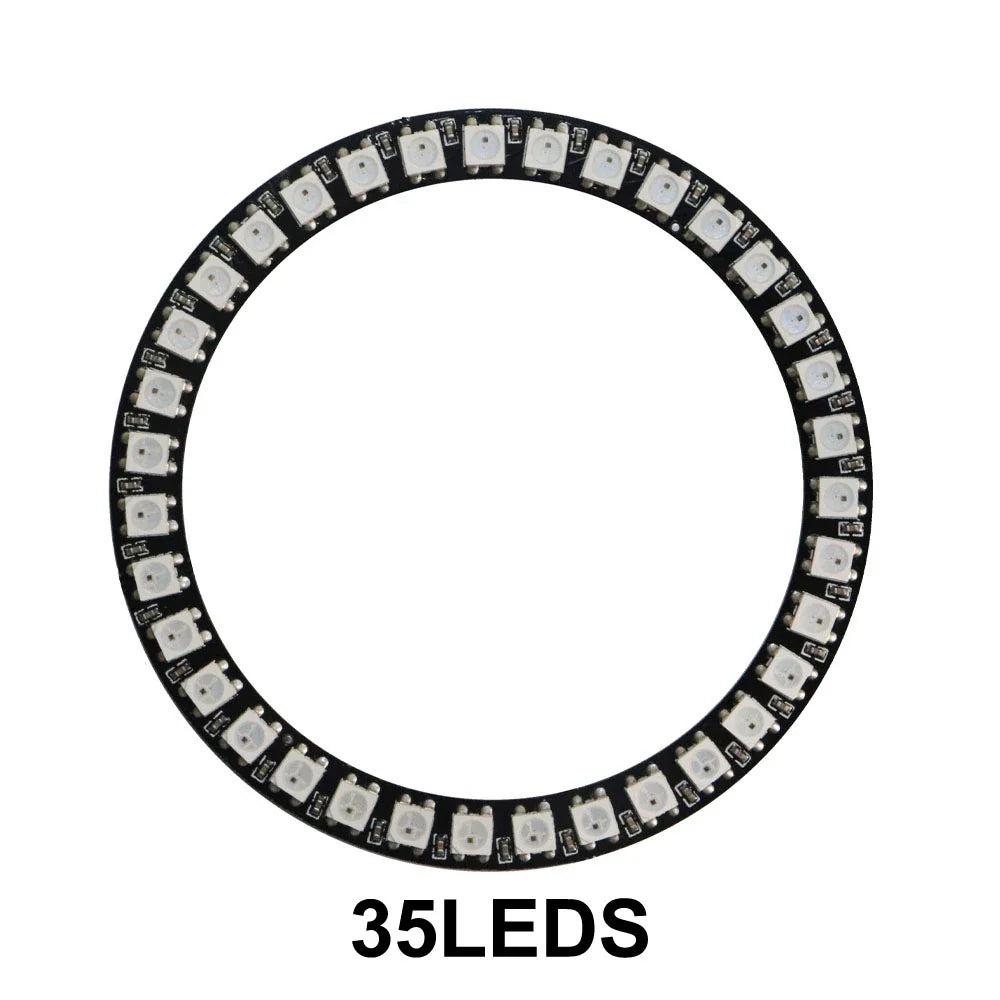

  • 35 LED: 96 mm / 78 mm / 9 mm (3.78" / 3.07" / 0.35")

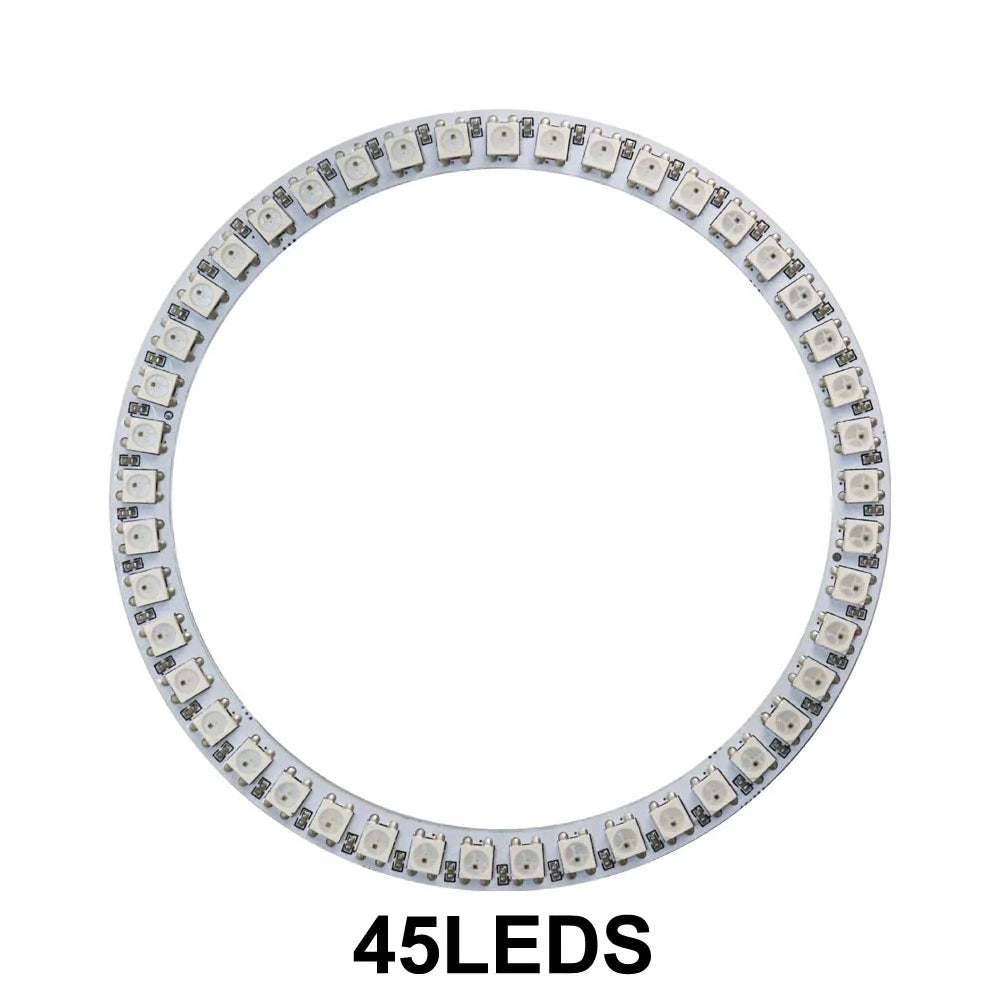

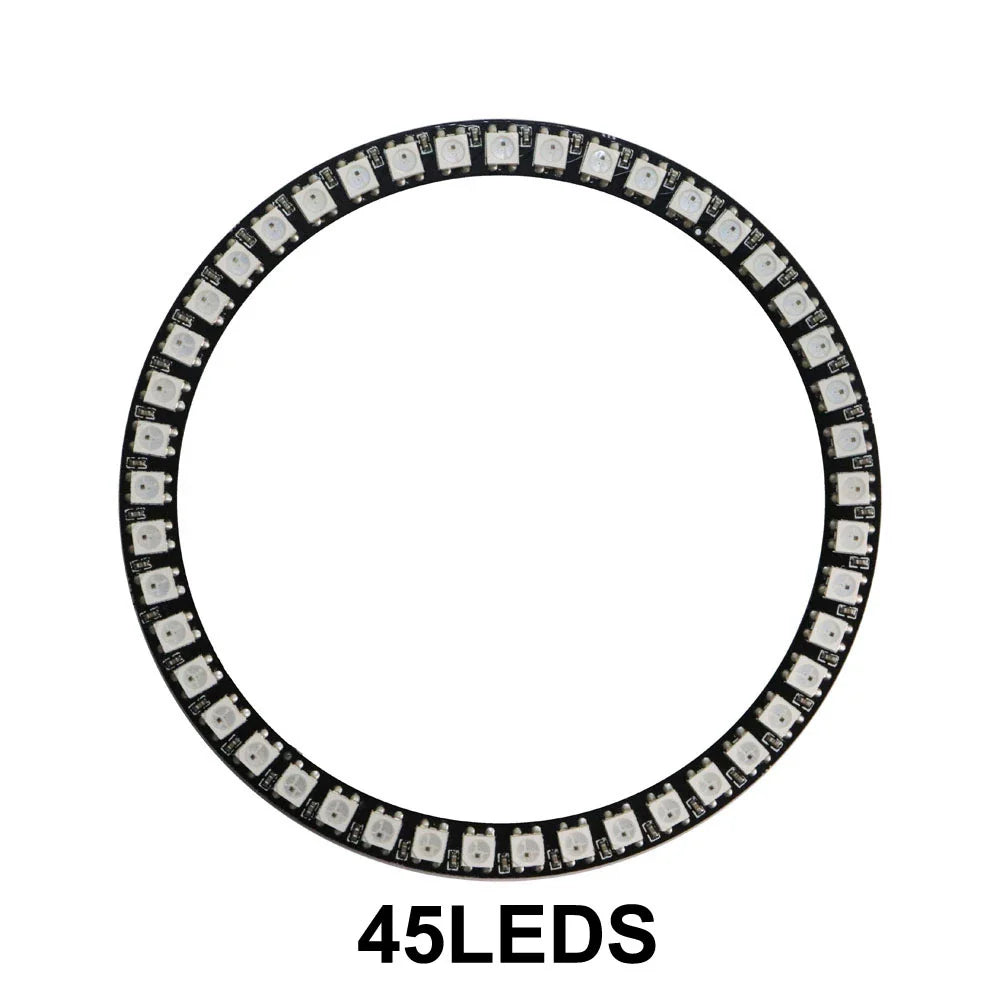

  • 45 LED: 120 mm / 102 mm / 9 mm (4.72" / 4.02" / 0.35")
• Package Includes: LED ring only. Power supply and controller sold separately.

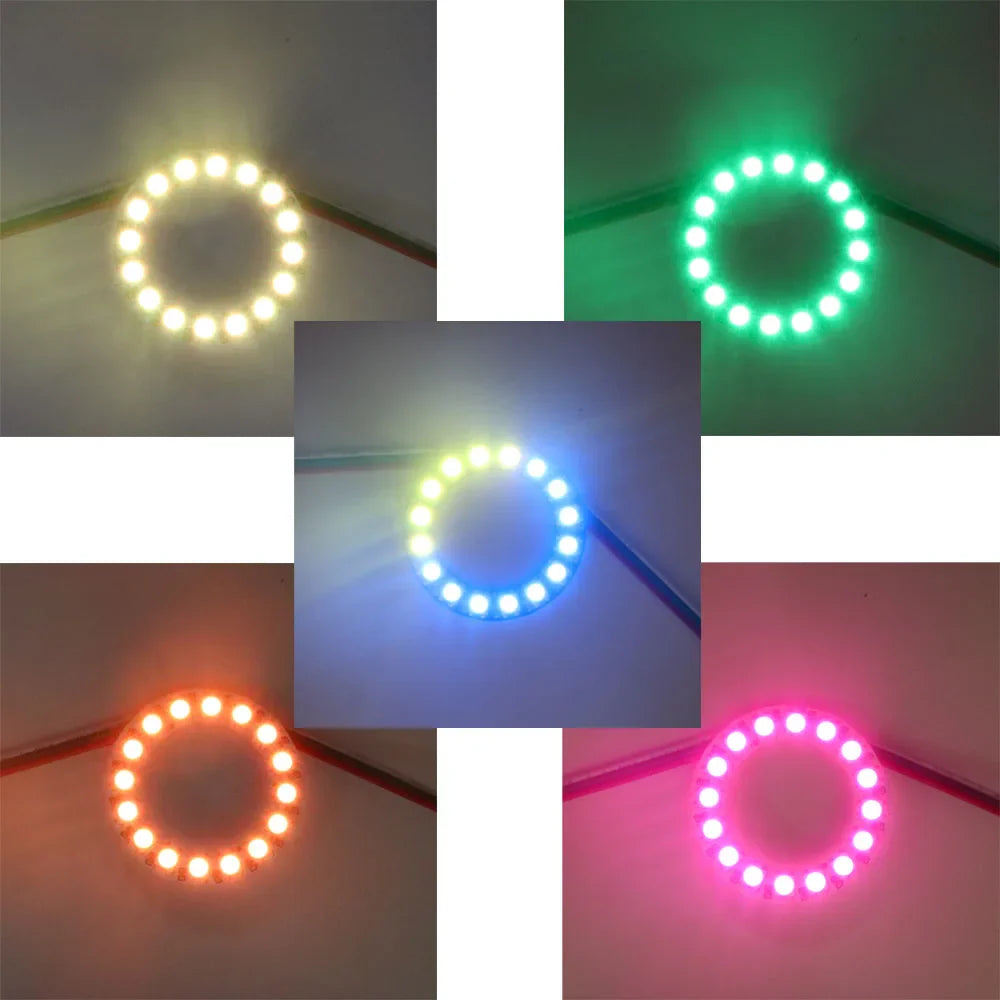

Overview: These WS2812B rings are ideal for custom lighting effects where per-pixel control and smooth color transitions are required. They support full RGB color mixing and creative animations when driven by a compatible microcontroller. Ensure your controller and power supply can handle the current draw for the chosen ring size.
